| MRC |
Requirement Statement |
Characteristics |
| CRSQ |
COUNTERSINK ANGLE |
100.0 DEGREES NOMINAL |
| AASB |
FASTENER LENGTH |
2.055 INCHES MINIMUM AND 2.255 INCHES MAXIMUM |
| AAUR |
GRIP DIAMETER |
0.1625 INCHES MINIMUM AND 0.1635 INCHES MAXIMUM |
| ANEE |
GRIP LENGTH |
1.370 INCHES MINIMUM AND 1.380 INCHES MAXIMUM |
| AAZG |
HEAD MAJOR DIAMETER |
0.2532 INCHES MINIMUM AND 0.2605 INCHES MAXIMUM |
| AASK |
HEAD STYLE |
COUNTERSUNK CYLINDRICAL CONVEX |
| AGAV |
III END ITEM IDENTIFICATION |
1520-01-457-5179 |
| MATT |
MATERIAL |
TITANIUM ALLOY UNS R56400 OVERALL |
| AHYM |
NOMINAL THREAD DIAMETER |
0.1640 INCHES |
| CXCY |
III PART NAME ASSIGNED BY CONTROLLING AGENCY |

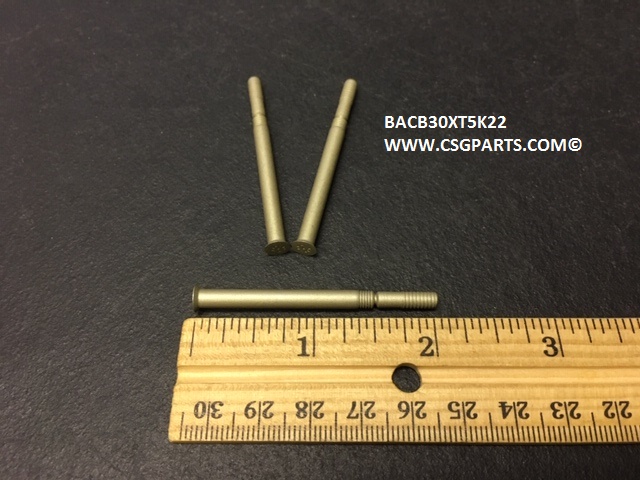

BOLT, LOCK, 100 DEG HEAD |
| AAUM |
LOCKING FEATURE |
SLOTTED LOCKING FEATURE |
| MDCL |
MATERIAL DOCUMENT AND CLASSIFICATION |
AMS4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| FEAT |
SPECIAL FEATURES |
BOLT HAS A SHEAR STRENGTH OF 95000PSI. FINISH IS DESIGNATED BY YELLOW DYE OR PAINT ON A PORTION OF THE PINTAIL. THREADED PORTION BREAKS OFF AFTER BOLT IS INSERTED. BOLT IS KEPT IN PLACE BY GROOVES. MAX SERVICE TEMP IS 250 DEGREES F. |
| STDC |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION |
BMS10-85, TYPE 1, CLASS A MFR REF SINGLE TREATMENT RESPONSE OVERALL |
| SFTT |
SURFACE TREATMENT |
ALUMINUM OVERALL |
| AAJF |
THREAD DIRECTION |
RIGHT-HAND |
| AASA |
THREAD LENGTH |
0.68 INCHES MINIMUM AND 0.88 INCHES MAXIMUM |
