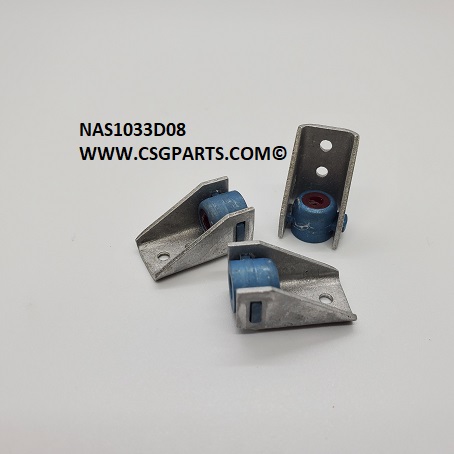

| MRC |
Requirement Statement |
Characteristics |
| ADBR |
DISTANCE FROM BASE TO CENTER OF APERTURE |
0.281 INCHES NOMINAL |
| ADFV |
DISTANCE FROM MOUNTING HOLE CENTER TO BASE |
0.484 INCHES NOMINAL |
| ADFY |
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH |
0.250 INCHES NOMINAL |
| AAWY |
COUNTERBORE DIAMETER |
0.170 INCHES MINIMUM NUT AND 0.185 INCHES MAXIMUM NUT |
| CBBL |
FEATURES PROVIDED |
FLOATING NUT |
| MATT |
MATERIAL |
ALUMINUM ALLOY NUT |
| MATT |
MATERIAL |
ALUMINUM ALLOY SHELL |
| MATT |
MATERIAL |
PLASTIC LOCKING INSERT |
| ABTB |
MOUNTING HOLE DIAMETER |
0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| ADFU |
MOUNTING HOLE ARRANGEMENT STYLE |
2 HOLES |
| CQJX |
NOMINAL THREAD SIZE |
0.164 INCHES |
| ADFK |
NUT COUNTERBORE DEPTH |
0.070 INCHES NOMINAL NUT |
| ADEA |
NUT HEIGHT |
0.343 INCHES MAXIMUM |
| ACVN |
NUT LENGTH |
0.906 INCHES MAXIMUM |
| ADFP |
NUT MOUNTING PROVISION |
STRAIGHT HOLES |
| ACTA |
NUT STYLE |
PLATE |
| AAUM |
LOCKING FEATURE |
PREVAILING TORQUE WITH NONMETALLIC INSERT |
| ADEB |
PLATE THICKNESS |
0.075 INCHES MAXIMUM |
| ADEC |
PLATE WIDTH |
0.619 INCHES MAXIMUM |
| BZRR |
THREAD SERIES |
UNJC |
| ZZZK |
SPECIFICATION/STANDARD DATA |
80205-NAS 1033 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| STDC |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION |
MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE NUT OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE NUT |
| STDC |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION |
MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE SHELL OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE SHELL |
| SFTT |
SURFACE TREATMENT |
ANODIZE NUT OR CHROMATE NUT |
| SFTT |
SURFACE TREATMENT |
ANODIZE SHELL OR CHROMATE SHELL |
| AZKQ |
TEMP RATING |
250.0 DEG FAHRENHEIT NOMINAL |
| AAJD |
THREAD CLASS |
3B |
| AAJF |
THREAD DIRECTION |
RIGHT-HAND |
| CMLP |
THREAD QUANTITY PER INCH |
32 |
