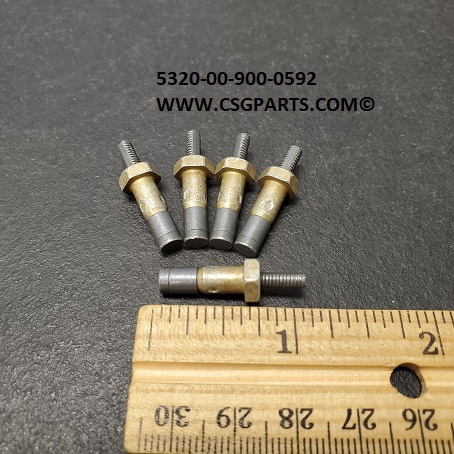

5320-00-900-0592, 5320009000592 NSN Information

5320-00-900-0592
Request for Quote

Manufacturer Part Number(s):

FSC NIIN ITEM NAME
5320 009000592 RIVET,BLIND
INC ESDC HMIC


5320-00-900-0592 MCRD (Master Cross Reference Data)

Mfg. Part # Mfg. Name CAGE RNCC RNVC ISC MSDS SADC DAC HCC
PLT214-6-4 MONOGRAM AEROSPACE FASTENERS, INC. 98524 3 2 2
PLT214-6-4 MONOGRAM AEROSPACE FASTENERS, INC. 5M902 3 2 2
PPG200-4 MONOGRAM AEROSPACE FASTENERS, INC. 4399 C 1 2 AC
SS5053-06-4 MONOGRAM AEROSPACE FASTENERS, INC. 78286 C 1 2 AC
PPG200A4 MONOGRAM AEROSPACE FASTENERS, INC. 92541 C 1 2 AC
PLT214-6-4 MONOGRAM AEROSPACE FASTENERS, INC. C4293 5 2 2
SS5053-6-4 MONOGRAM AEROSPACE FASTENERS, INC. 78286 7 2 2
PLT214-6-4 MONOGRAM AEROSPACE FASTENERS, INC. 92215 5 9 2
PPG200-4 MONOGRAM AEROSPACE FASTENERS, INC. 92541 5 9 2
PLT214-6-4 MONOGRAM AEROSPACE FASTENERS, INC. 92541 5 9 2
BAG6A4H MONOGRAM AEROSPACE FASTENERS, INC. 92215 5 9 2

5320-00-900-0592 Characteristics

MRC Requirement Statement Characteristics
ABAF EXPANSION DEVICE THREADED MANDREL
AASB FASTENER LENGTH 0.353 INCHES NOMINAL
ANEE GRIP LENGTH 0.220 INCHES MINIMUM AND 0.281 INCHES MAXIMUM
AASU HEAD HEIGHT 0.103 INCHES MINIMUM AND 0.113 INCHES MAXIMUM
AASK HEAD STYLE HEXAGON
MDCL MATERIAL DOCUMENT AND CLASSIFICATION MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE BOLT OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE BOLT OR MIL-S-6758 MIL SPEC 3RD MATERIAL RESPONSE BOLT
MDCL MATERIAL DOCUMENT AND CLASSIFICATION MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE NUT OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE NUT OR MIL-S-6758 MIL SPEC 3RD MATERIAL RESPONSE NUT
MDCL MATERIAL DOCUMENT AND CLASSIFICATION QQ-S-763 FED SPEC 1ST MATERIAL RESPONSE SLEEVE OR AMS 5639 ASSN STD 1ST MATERIAL RESPONSE SLEEVE OR AMS 5641 ASSN STD 2ND MATERIAL RESPONSE SLEEVE OR ASTM A582 ASSN STD 3RD MATERIAL RESPONSE SLEEVE
MATT MATERIAL STEEL COMP 304 SLEEVE OR STEEL COMP 303F SLEEVE OR STEEL COMP 303 SLEEVE
MATT MATERIAL STEEL COMP 4140 BOLT OR STEEL COMP 8740 BOLT OR STEEL COMP 4130 BOLT
MATT MATERIAL STEEL COMP 4140 NUT OR STEEL COMP 8740 NUT OR STEEL COMP 4130 NUT
AAZE SHANK DIAMETER 0.202 INCHES MINIMUM AND 0.203 INCHES MAXIMUM
AAZF SHANK STYLE THREADED SELF-PLUGGING SHANK W/SLEEVE
ASDB WIDTH ACROSS FLATS 0.205 INCHES MINIMUM AND 0.312 INCHES MAXIMUM
STDC SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE BOLT
STDC SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE NUT
STDC SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TY 1,CL 3 FED SPEC 1ST TREATMENT RESPONSE SLEEVE AND QQ-P-35 FED SPEC 2ND TREATMENT RESPONSE SLEEVE
SFTT SURFACE TREATMENT CADMIUM BOLT AND CHROMATE BOLT
SFTT SURFACE TREATMENT CADMIUM NUT AND CHROMATE NUT
SFTT SURFACE TREATMENT CADMIUM SLEEVE AND PASSIVATE SLEEVE
